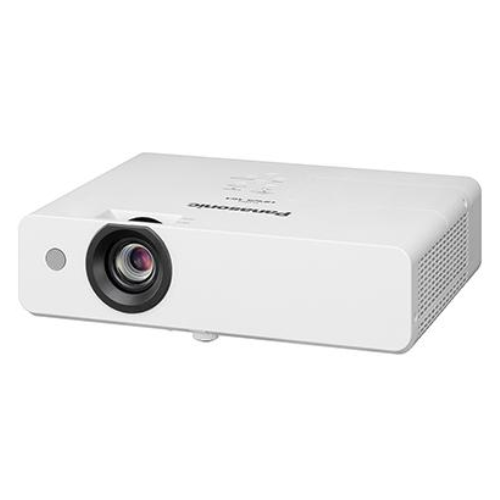

Panasonic PT-LB306, 3100 Lumens XGA Multimedia Projector

Designed for education and corporate environments. LCD, 3,100 lumens, XGA
  • LCD, 3,100 lumens, XGA
  • Lamp replacement cycle of up to 20,000 hours in Eco mode
  • Quiet operation for distraction-free projection
  • 16,000:1 contrast ratio
Product Code: PT-LB306
Brand: Panasonic
Warranty: 1 Year
Availability: In Stock
Rs. 169,999
Technical Specification
  • LCD Panel | Panel Size 16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
  • LCD Panel | Number of pixels 786,432 (1024 x 768 pixels) x 3
  • Light Source 230 W x 1 lamp
  • Light Output *2 3,600 lm
  • Lamp replacement cycle*3 Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h
  • Filter Replacement Cycle Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h
  • Resolution 1024 x 768 pixels
  • Contrast Ratio*2 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal)
  • Screen size [diagonal] 0.76–7.62 m (30–300 in), 4:3 aspect ratio
  • Center-to-corner zone ratio*2 85 %
  • Lens Manual zoom (1.2x), manual focus lens, F = 2.1–2.25,f = 19.11–22.94 mm,throw ratio: 1.47–1.77:1
  • Keystone Correction Range Vertical: ±30 ° (Auto, Manual)
  • Installation Ceiling/desk, front/rear
  • Terminals | HDMI In HDMI 19-pin x 1 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
  • Terminals | Computer 1 In D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC]
  • Terminals | Computer 2 In/1 Out -
  • Terminals | Video In Pin jack x 1
  • Terminals | Audio In 1 M3 (L,R) x 1
  • Terminals | Audio In 2 Pin jack x 2 (L,R)
  • Terminals | Audio Out M3 (L,R) x 1 (Variable)
  • Terminals | LAN -
  • Terminals | Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compatible
  • Terminals | USB A -
  • Terminals | USB B For service only
  • Power Supply AC 100–240 V, 50/60 Hz
  • Power Consumption 300 W
  • Built in Speaker 2 W monaural
  • Operation Noise*2 Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB
  • Cabinet Materials Molded plastic
  • Dimensions (W x H x D) 335 x 96*5 x 252 mm (13 3/16˝ x 3 25/32˝ *5 x 9 29/32˝ )
  • Weight*6 Approx. 2.8 kg (6.2 lbs)
  • Operating Environment Operating temperature*7: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) ataltitudes of 1,400–2,700 m (4,593–8,858 ft); Operating humidity: 20–80 % (No condensation)
  • Terminals | Monitor Out D-sub HD 15-pin (female) x 1 [RGB/YPBPR]
  • Light output 3,600 lm
