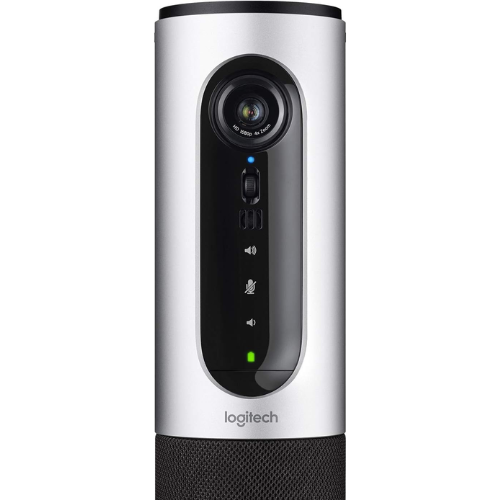

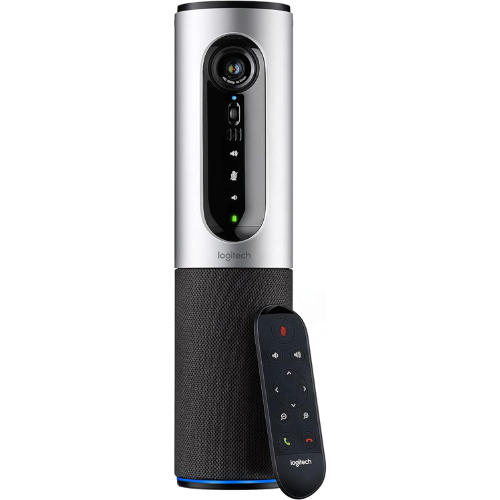

Logitech ConferenceCam Connect All-in-One Video Collaboration Solution for Small Groups – Full HD 1080p Video, USB and Bluetooth Speakerphone, Plug-and-Play

DIMENSIONS

Main unit

• Height: 304.2 mm
• Width: 75 mm
• Depth: 75 mm
• Weight: 766 g

Remote Control

• Height: 128 mm
• Width: 41 mm
• Depth: 9 mm
• Weight: 32 g

COMPATIBILITY

• Windows 7,8.1 or 10
• macOS X 10.10 or later

TECHNICAL SPECIFICATIONS

Camera

• Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video

Field of View

• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2°
• 4X digital zoom
• RightLight™ 2 technology for clarity in various lighting environments, even low light
• Digital pan, tilt and zoom from remote control or optional downloadable app
• Mechanical tilt wheel
• Camera LED for active streaming indication

SPEAKERPHONE

• Integrated full duplex speakerphone with echo and noise cancellation
• 360° wideband audio
• Bluetooth and NFC enabled
• LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
• Controls for call answer/end, volume and mute

Microphones (TX)

• Two omni-directional microphones supporting 3.6 m diameter range
• Frequency Response: 100Hz – 16KHz
• Sensitivity: -34 dB +/-3dB
• Distortion: <1% _40_="" 1khz="" at="" />

Speakers (Rx)

• Frequency Response: 140Hz – 16KHz
• Sensitivity: 89dBSPL +/-3 dB at 1W/0.5M
• Max output: 91.5dBSPL at 0.5 m
• Distortion: <5% from="" />

Remote Control

• Docks on device and functions as a lens cover
• IR 3 m range
• CR2032 battery (included)

Cables / Power

• AC Power adapter with regional plugs
• USB cable 1.8 m
• Integrated rechargeable battery

MOUNT

• Designed for tabletop use
• Kensington security slot

COMPATIBILITY AND CERTIFICATIONS

• Plug-and-play USB connectivity
• Certified for Skype for Business and ready for Teams
• Zoom Certified
• Fuze® Certified
• Compatible with Google Meet®
• Cisco Jabber and WebEx compatible
• Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

PACKAGE CONTENTS

• Logitech Connect device
• Remote control
• 1.8 meter USB cable
• Power adapter with regional plugs
• Documentation
