Logitech Rally Plus is the modular video conferencing system for large and extra large rooms. Discover integrated, simple, modular video conferencing with best-in-class optics and audio.
Specification:
Dimensions
- Rally Camera: Height: 182.5 mm, Width: 152 mm, Depth: 152 mm
- Rally Speaker: Height: 103 mm, Width: 449 mm, Depth: 80 mm
- Rally Mic Pod: Height: 21 mm, Width: 102 mm, Depth: 102 mm
- Rally Display Hub: Height: 40 mm, Width: 206 mm, Depth: 179 mm
- Rally Table Hub: Height: 40 mm, Width: 176 mm, Depth: 138 1 mm
RIGHTSENSE TECHNOLOGIES
RightLight with WDR
- Low-light compensation
- Video noise reduction
- Low-light saturation optimization
- Renders natural skin tones for each participant on camera
- Reduces backlighting and glare without darkening the entire image.
RightSight
- Human figure detection
- Auto-frame participants at meeting start
- Auto-frame participants on-demand
- Auto-reframe participants during meetings
RightSound
- Machine learning AI trained to distinguish human speech from other sounds
- AEC (Acoustic Echo Cancellation)
- VAD (Voice Activity Detector)
- Background noise suppression
- Auto-level loud and soft voices
RightSound Mic Matrix
- Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
- Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
- Beam focus refresh rate: 8ms (125 times/second)
Anti-Vibration Suspension
- A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
- Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

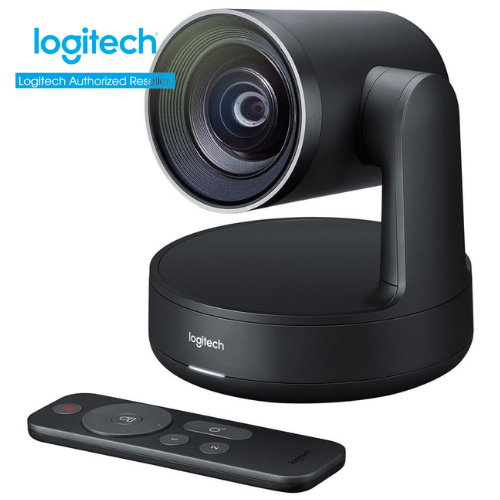

Rally Camera
- Zoom: 15x HD zoom (5x optical + 3x digital)
- Pan: 180° (±90°)
- Tilt: 140° (+50° / -90°)
- Field of View:
- Diagonal: 90°
- Horizontal: 82°
- Vertical: 52°
- Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
- Resolutions:
- @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
- @ 60fps: 1080p, 720p
- RightLight Technologies:
- Wide Dynamic Range (WDR)
- Low-light compensation
- Video noise reduction
- Low-light saturation optimization
- Privacy: Lens parks at -90° in sleep mode for assured privacy
Rally Mic Pod
- Pickup Range: 7 m diameter
- Microphones: Four omnidirectional microphones forming eight acoustic beams
- Features:
- AEC (Acoustic Echo Cancellation)
- VAD (Voice Activity Detector)
- Background noise suppression
- Mute button with LED status indicator
- Cable: Captive 2.95 m 12-pin cable
- Daisy Chaining: Supports up to 7 Rally Mic Pods
- Technical Specifications:
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-27 dB +/-1dB @ 1Pa
- Microphone data rate: 48 kHz
- Recommended Participants:
- Rally (one Mic Pod): 16
- Rally Plus (two Mic Pods): 16
- Additional participants per Mic Pod: 6
- Rally with 7 Mic Pods: 46
Rally Speaker
- Driver: High-performance 76 mm driver with rare-earth magnet
- Vibration Reduction: Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
- Connectivity: Mini XLR cable connects to Rally Display Hub for both signal and power
- Audio Specifications:
- Speaker volume: 95dB SPL @1W, 100dB SPL @7.5W (both +/-2dB at ½ meter)
- Sensitivity: 95+/-2 dB SPL at ½ meter
- Distortion: 200Hz–300Hz <2.5%, _300hze28093_10khz="" />< />
- Sampling rate: 48 kHz
Rally Table Hub
- Connectivity:
- Single CAT6A cable connection to Rally Display Hub (5 m cable included, supports customer-supplied cables up to 50 m)
- 12-Pin connector for Rally Mic Pod
- HDMI Type A passthrough to Display Hub (x2)
- USB Type C
- USB Type A (reserved for future capability)
- USB Type B (connects to meeting room computer)
- RJ45 (reserved for future capability)
- Power input
- Features:
- Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
Rally Display Hub
-
Ports:
- HDMI Type A: (x2) (connects to displays)
- USB-C: (connects to Rally Camera)
- USB Type B: (connects to meeting room computer)
- RJ45: connects to Table Hub
- Mini XLR: x2 (for connecting to Rally Speakers)
- Power input
-
Functionality:
- Powers one or two Rally Speakers
Remote Control
- Type: RF remote control (line of sight not required)
- Battery: CR2032 batteries (included)
Cables & Power
- Camera to Display Hub: 2 m USB 3.1 Type C to USB Type C 3.1
- Conference Room Computer to Display or Table Hub: 2 m USB 3.1 Type A to USB Type B
- Display Hub to Table Hub: 5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m)
- Display Hub to Speaker (x2): 2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m)
- Conference Room Computer to Displays (x2): 2 m HDMI A
- Mic Pod: 2.95 m: Hardwired with 12 pin connector
- Power Outlets to Power Supplies (x2): 1 m
- Power Supplies to Table Hub / Display Hub (x2): 1.5 m
Available Accessories
Here's the information about available accessories for the Logitech Rally System formatted for a website:
- Rally Mounting Kit:
- Includes two mounting kits with cable retainers.
- Provides mounting brackets for:
- Camera
- Speakers (x2)
- Hubs (x2)
- Rally Mic Pod (Sold separately)
- Expands audio coverage in larger rooms by allowing deployment of up to 7 Rally Mic Pods.
- Mic Pod Mount (Sold separately)
- Secures microphones to the table and hides cables for a clean aesthetic.
- Rally Mic Pod Hub (Sold separately)
- Offers connection flexibility for Rally Mic Pods (up to 3) or additional hubs.
- Enables under-table cabling for a streamlined setup.
- Rally Speaker (Sold separately)
- Add a second Rally Speaker to enhance audio coverage in larger rooms.
Certifications and Compatibility
Appliance Mode
The Logitech Rally System supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate.
